Tube Cut-Off Dies

Punch-press cut-off dies that cleanly cut tube and pipe to length — rounds, squares, rectangles, and special shapes up to 6" diameter. Five models, manual or automatic tube stops, plus special dies for trimming bent tubular parts. Designed and built in the USA since 1995.

Request a Quote → See the Models
Cut-Off Die Capacity

One Die, a Full Range of Shapes

Innovo cut-off dies cut a full range of rounds, squares, rectangles, and special shapes — anything that fits within the capacity of the largest round for the model you select. From the 1" D100CO to the 6" D600CO, there's a die sized to your tube and your press.

  • Rounds, squares, rectangles & special shapes
  • Five models from 1" to 6" round capacity
  • Clean, burr-minimized cut-off on a punch press
  • In-house tool & die design and build
Request a Cut-Off Die Quote →

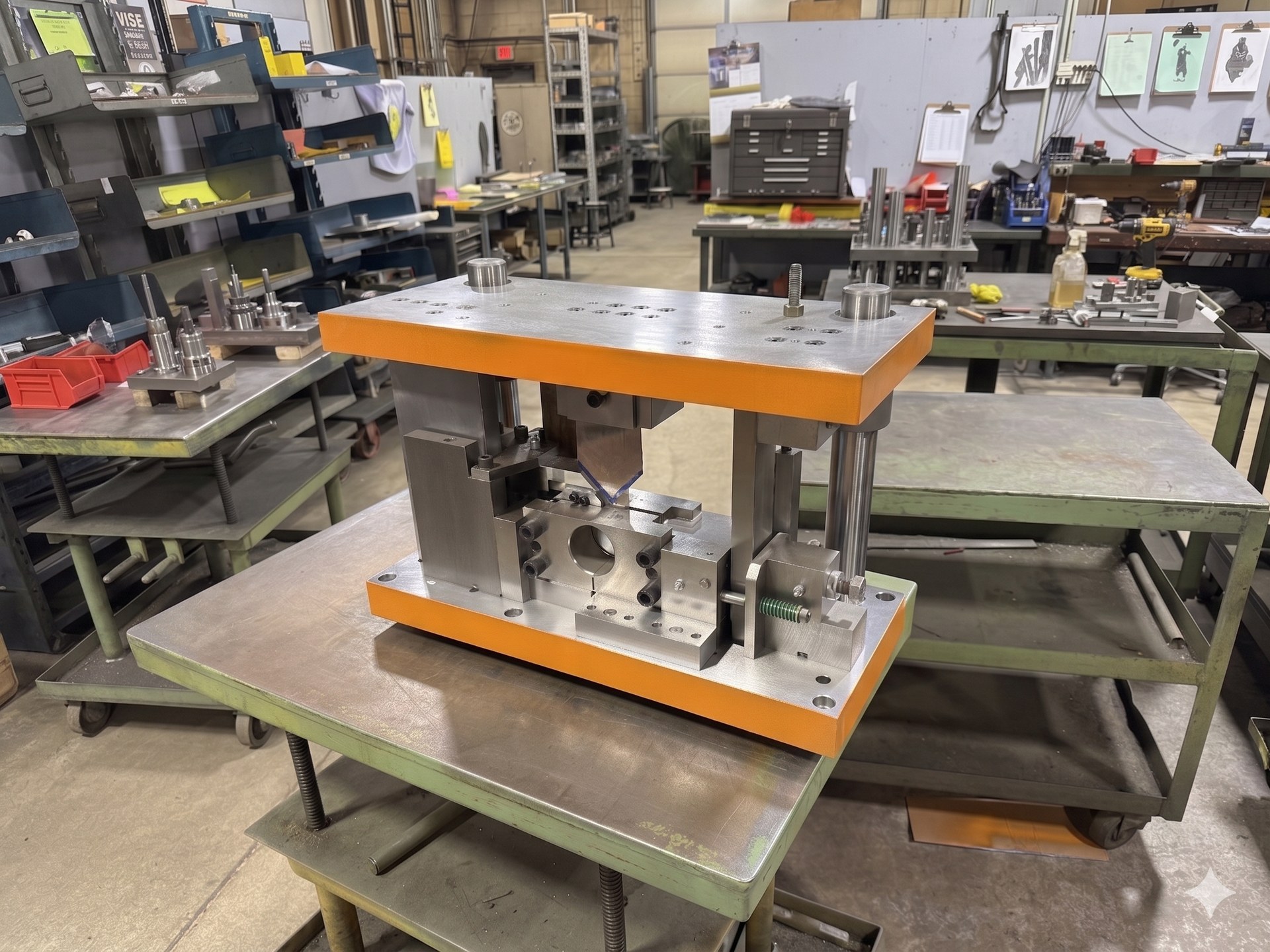

Innovo D300CO tube cut-off die — 3 inch round capacity punch-press cut-off die
Tube Cut-Off Stop Assemblies

Manual or Automatic Feeding

Match the stop assembly to your production: hands-on control, or a prox-sensor cycle that keeps pace with the operator.

/ 01

Manual Tube Stop

The operator pushes the tube to the stop and presses the foot switch on the punch press to cycle the die. Simple, repeatable, and fully operator-controlled.

/ 02

Automatic Tube Stop

Pushing the tube to the stop automatically cycles the press and cuts the tube — repeating as long as the operator keeps feeding tube. Set up with a prox sensor.

/ 03

Special Applications

Dies for cutting and trimming bent tubular parts after bending, with air toggle slide clamp assemblies for safe, easy loading and unloading of bent tubes.

/ 04

Built In-House

Every cut-off die is designed and built by Innovo's tool and die shop in the USA — matched to your tube, shape, and punch press.

The Cut-Off Die Lineup

D100CO – D600CO Specifications

Five models sized by round capacity. Match the stroke and shut height to your punch press.

Model Capacity Left to Right Front to Back Stroke Shut Height Weight
D100CO1.0" Dia17-1/2"10"3"7.5"280 lb
D200CO2.0" Dia20"10"5"–6"8.125"370 lb
D300CO3.0" Dia23"11"6"–7"11.5"480 lb
D400CO4.0" Dia27"12.5"7"–8"14.5"590 lb
D600CO6.0" Dia36"15.5"10"–11"22.5"850 lb

Capacity is the largest round per model; squares, rectangles, and special shapes are cut within that capacity.

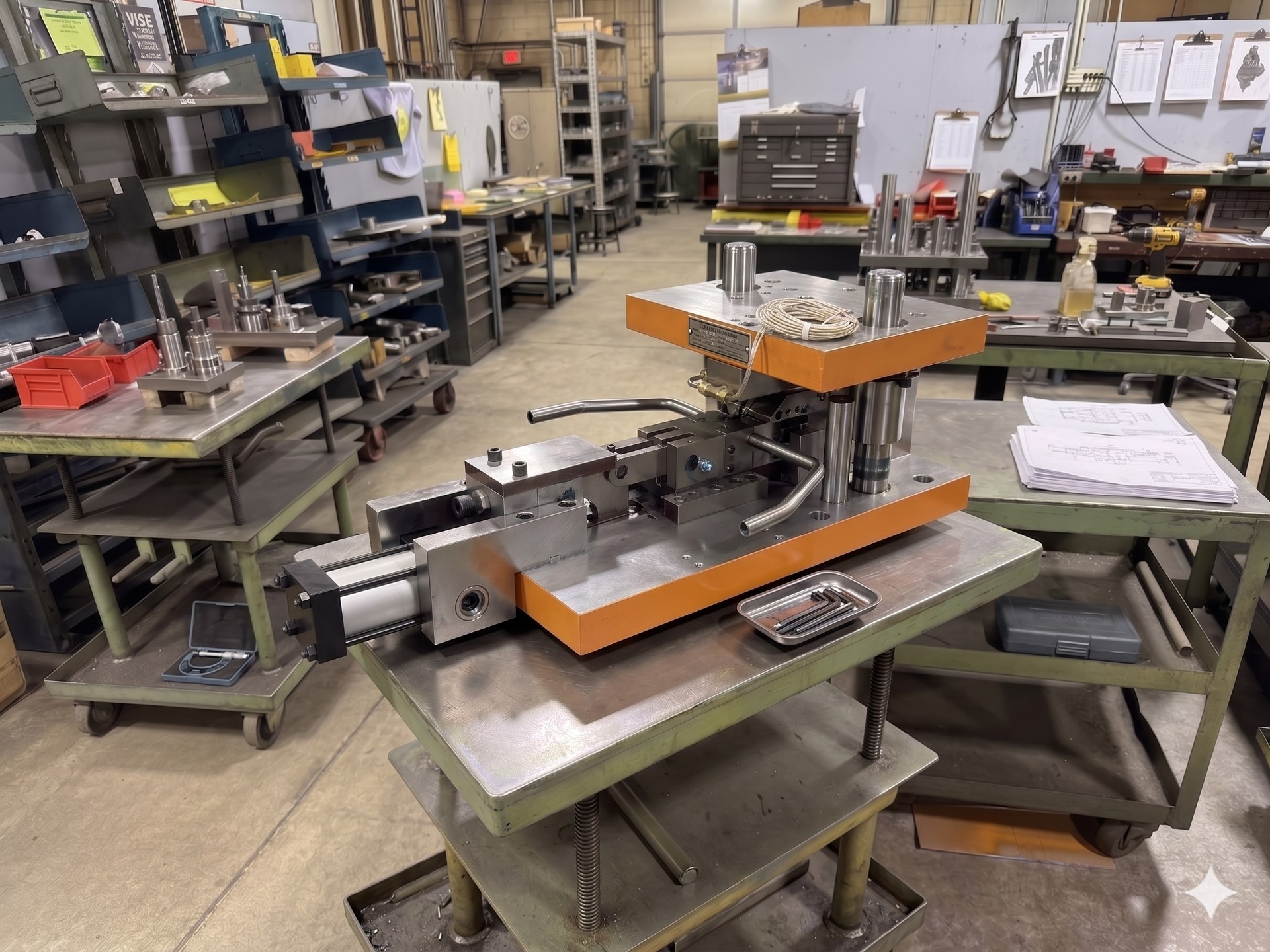

Innovo D100COT cut-off die for trimming bent tubular parts with air toggle slide clamp assembly
Special Applications

Cut & Trim Bent Tubular Parts

Beyond straight cut-off, Innovo builds dies for special applications — cutting and trimming bent tubular parts after the bending process, including angle cut-off.

These dies come with special air toggle slide clamp-up assemblies for safe and easy loading and unloading of bent tubes — so even complex bent geometry is handled cleanly and repeatably.

Explore Custom Tooling →
Frequently Asked

Cut-Off Dies, Answered

What is a tube cut-off die?
A tube cut-off die is press tooling that cleanly cuts tube and pipe to length on a punch press. Innovo's cut-off dies cut a full range of rounds, squares, rectangles, and special shapes up to the capacity of the largest round for the selected model.
What sizes do Innovo cut-off dies handle?
Innovo offers five models — D100CO through D600CO — covering round capacities from 1" to 6" diameter, plus square, rectangular, and special shapes that fit within that capacity.
What is the difference between manual and automatic tube stop assemblies?
With a manual tube stop, the operator pushes the tube to the stop and presses the foot switch to cycle the die. With an automatic tube stop, controlled by a prox sensor, pushing the tube to the stop automatically cycles the press and cuts the tube, repeating as long as the operator keeps feeding tube.
Can Innovo cut-off dies trim bent tubes?
Yes. Innovo manufactures cut-off dies for special applications such as cutting and trimming bent tubular parts after bending, with special air toggle slide clamp assemblies for safe, easy loading and unloading of bent tubes.
What press do Innovo cut-off dies require?
Cut-off dies run in a punch press. Each model lists its stroke and shut height — for example, the D100CO needs a 3" stroke and 7.5" shut height — so you can match the die to your press.

Need a Cut-Off Die for Your Tube?

Send your tube size, shape, and press specs — we'll match you to the right model or build a custom die.
